产品详情
可提供加工定制服务：来样加工、来图加工、来料加工

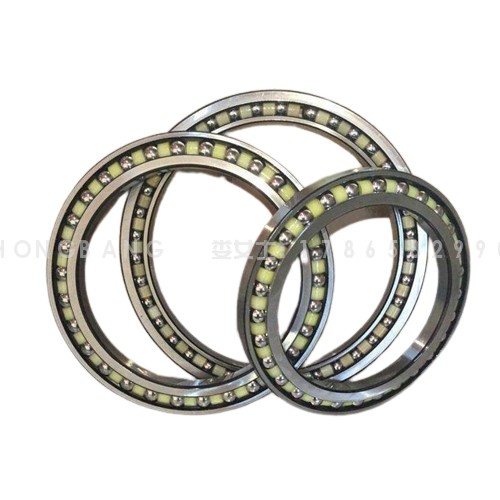

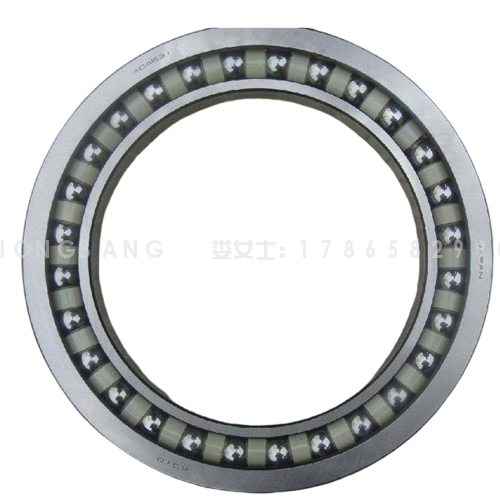

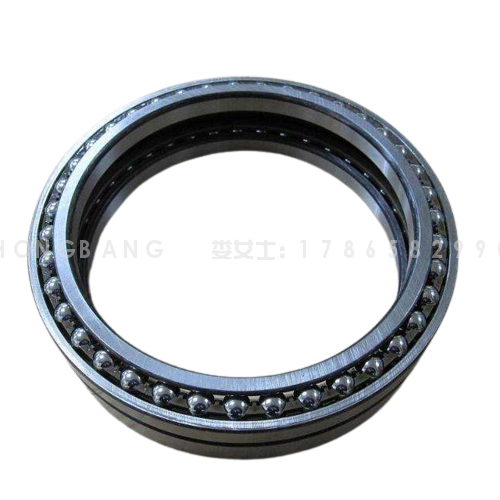

| 挖掘机专用轴承 | |||||||
| 轴承型号 | 基本尺寸 Dimension (mm) | 轴承型号 | 基本尺寸 Dimension (mm) | ||||
| Bearing No. | d | D | B | Bearing No. | d | D | B |
| BA152-2036 | 152 | 203 | 26 | AC4531 | 225 | 315 | 36 |
| BA222-1WSA | 222 | 273 | 26 | AC4631 | 230 | 310 | 39 |
| BA220-6SA | 220 | 276 | 26 | BA4852PX1 | 240 | 310 | 33 |
| BA240-3ASA | 240 | 310 | 33.5 | RI96Z-4 | 196.85 | 241.3 | 17.462/23.812 |
| SF4815VPX1 | 240 | 310 | 34 | AC463240 | 230 | 320 | 40 |
| SF48131PX1 | 240 | 310 | 33.4 | 180N19W | 180 | 250 | 33 |
| AC5033 | 250 | 330 | 37 | 200BA27V-2 | 200 | 270 | 33 |
| AC5836 | 289 | 355 | 34 | 210BA29V | 210 | 295 | 35 |
| AC463240 | 230 | 320 | 40 | AC423040-1 | 210 | 300 | 40 |
| HSO5145 | 117 | 145 | 14 | AC4630 | 230 | 300 | 35 |
| HSO5154 | 126 | 154 | 14 | BA280-2SA | 280 | 370 | 40 |
| HSO5383 | 320 | 383 | 30 | BA300-4WSA | 300 | 395 | 50 |
| MC6034 | 300 | 340 | 18 | BD130-1SA | 130 | 166 | 34 |
| 180BA-2256 | 180 | 225 | 22 | BN220-1 | 220 | 280 | 28 |
| B-SF4454PX1 | 220 | 295 | 33 | CR4411PX1 | 220 | 290 | 32 |
| BA260-4 | 260 | 340 | 38 | CR6016PX1 | 300 | 380 | 38 |
| AC4629 | 230 | 290 | 27 | SF2812PX1 | 140 | 175 | 17.5 |
| BA230-7ASA | 230 | 300 | 35 | SF3227PX1 | 160 | 200 | 20 |
| SF3607 | 180 | 225 | 15 | SF1007PX1 | 200 | 250 | 25 |
| BA180-4WSA | 180 | 250 | 33 | SF4019PX1 | 200 | 260 | 30 |
